Plastic extrusion profile production line

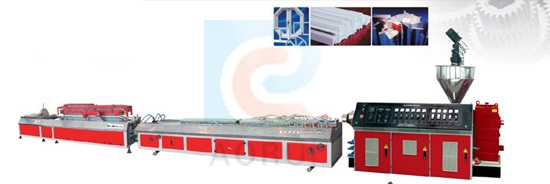

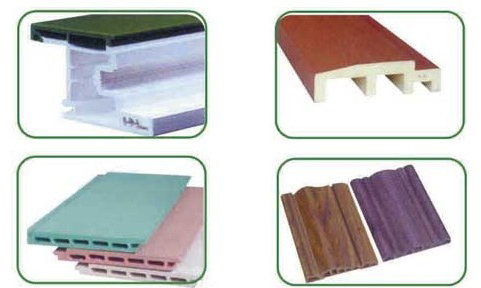

Plastic Extrusion Profile Production Line This unit is a professional production facility for the production of PVC plastic profiles. It mainly produces door and window series profiles, plates, sheets, micro-foam profiles, and micro-foam decorative panels. Our company has introduced a large-scale production line of plastic window and door profiled materials developed through absorption of foreign technology. It is equipped with a conical twin-screw extruder, which has the advantages of high automation, stable work performance, large output, and high efficiency.

Supporting host	SJSZ60*22 Conical Twin Screw Extruder	SJ-90*25 single screw extruder	SJ-65*30 single screw extruder
Vacuum setting platform	SDZ-3200	SDT-90	SDT-65
Effective length of the platform mm	3200	2800	1500
Vacuum pump power kw	3*7.5	2*5.5	5.5
Traction machine model	SXQ-240	SLQ-200	SLQ-200
Traction length mm	300	300	300
Traction speed m/min	0.3-3	0.3-3	0.3-3
Traction power kw	2*1.5	2.2	1.5
Cutting power kw	1.1	1.1	1.1
Cutting method	Pneumatic automatic	Pneumatic automatic	Pneumatic automatic
Unit mass kg	8000	7000	6000
Overall size m*m*m	16*2.2*2.9	1*2.2*1.9	14*1.9*1.9
