Double-wall corrugated pipe production equipment

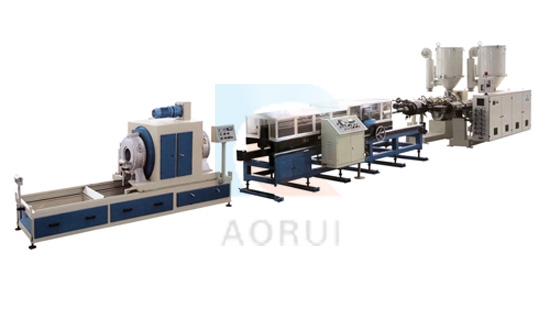

PVC double-wall corrugated pipe production line is introduced in detail:
Performance and advantages:
PVC double-wall corrugated pipe is widely used. Through the company's absorption of foreign advanced technology, independent research and development of PVC double-wall corrugated pipe production line, with a number of patented technology, production diameter range 63mm-500mm. High degree of automation, stable operation, high output. The new high-efficiency single screw extruder has a large amount of extrusion. The forming machine adopts horizontal structure, shuttle drive, sealed water-cooling, vacuum forming, original online double-flare flaring.
The production line has beautiful appearance, high degree of automation, and stable and reliable production.
Main technical parameters:
63-160mm PVC double-wall corrugated pipe production line

composition	model	power	total weight	Features
Twin screw extruder	SJSZ--65	37 (drive power)	4500kg	Extrusion volume, anti-wear
Extrusion head	Φ63-Φ160	13 kw	--	The main material 38CrMoAl quenched and nitridized
Forming module	Φ63-Φ160	--	--	The main material 40Cr; conditioning treatment
Forming Machine	SBZ160	7kw	3200kg	Linkage with the host; automatic lubrication air cooling plus water cooling, cooling speed block
Cutting saw	QG160A	0.75kw	500kg	Ring blade chipless cutting
Automatic Flaring Machine	SBK2063	8.1kw	2500kg	Japan Mitsubishi programmable controller air-cooled setting;

160-500mm PVC Double Wall Corrugated Pipe Production Line

composition	model	Dimensions (length, width, height) mm	Total power (kw)	Total weight (kg)
Extruder	SJSZ92	6000x1400x2390	200( max)	8500
Mould	SBZG160 outside	2000xφ370	50(max)	2000
	SBZG200 outside	2400xφ465		2600
	SBZG250 outside			2800
	SBZG315 outside			3000
	SBZG400 outside	2400xφ620		3500
	SBZG500 outside	2400xφ700		4000
Forming Machine	SBCJ500	4600x2120x2180	50(max)	10000
Cutting Machine	QG6030	4252x2100x2400	7.5	3600
Pipe expanding machine	SGK500	8725x2600x2100	28	6000
