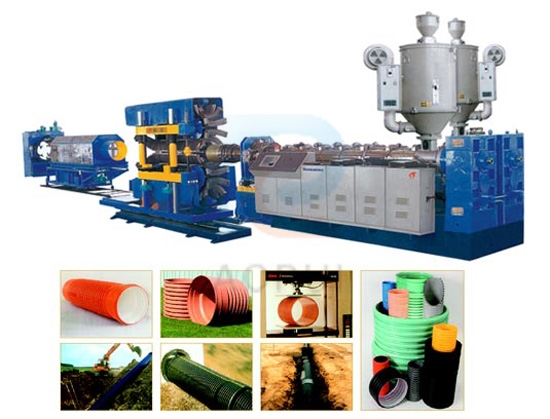

PE/PVC large dia

PE/PVC large dia. double-wall corrugated pipe is a new-type plastic tubing with the annular ripple on the outside wall and the smooth structure on the inner wall. Compared with other structures of non-conventional wall tubing, its weight is much lower than that of even wall tubing or concrete tubing at the same annular stiffness due to its excellent design of tubing wall structure. It is easy to connect and construct. The cost of tubing can be decreased by a large margin and it can increase the competitiveness of tubing market. It is popular and applicable generally abroad and it has greatly substituted the traditional concrete tubing and other structure wall tubing. With the further deepening of the state capital construction, large dia. double-wall corrugated pipe will be more widely used in the departments of city planning, water conservancy and post and telecommunications, etc. due to its superiority and vitality.
FIELDS IN APPLICATION
It is used in the fields of civil water supply and sewage, project of blowdown, water conservancy works, project of communication network, etc.
FEATURE OF THE MACHINE SET
PE/PVC large dia. double-wall corrugated pipe has been designed and developed carefully in our factory on the basis of the experience of producing tubing equipment many years and the most advanced technology and manufacturing engineering in the world and it is a special processing equipment at national leading level. It has adopted the man-machine interface to control on the whole line with high degree of automation, easy to operation and running steadily.
THE MAIN TECHNICAL SPECIFICATIONS。
THE MAIN TECHNICAL SPECIFICATIONS
TYPE JG-SBG630 JG-SBG800
RAW MATERIAL   PVC PE
EXTRUSION SYSTEM
SCREW DIA. mm Φ92/188 Φ90/120
L/D RATIO L/D   30:1
DRIVING POWER kw 90 75/135
HEATING POWER kw 77 120
HEATING ZONE   8 6×2
FORMING SYSTEM
NUMBER OF MOULD BLOCK Pair 42 42
DRIVING POWER kw 7.5 7.5
COOLING POWER kw 11 11
LUBRICATING POWER kw 0.75 0.75
MOVE SPEED OF MOULD BLOCK m/min 0.3-3 0.3-3
VACUUM PUMP POWER kw 75 75
FORMING LENGTH OF MOULD BLOCK mm 2286 2286
SPRAY COOLING SYSTEM
COOLING METHOD   COOLED BY WATER AND WIND
COOLING POWER kw 9.5 9.5
AUTOMATIC CUTTING SYSTEM
DRIVING TOTAL POWER kw 10.4 10.4
CUTTING METHOD   PLANETARY CUTTING
CUTTING RANGE mm Φ200-630 Φ225-800
OTHERS
RANGE OF PIPE DIA. mm Φ200-630 Φ225-800
CENTRAL HEIGHT mm 1600 1600
WATER CONSUMPTION L/H 6000 6000
INSTALLED CAPACITY(ABOUT) kw 460 550
NORMAL POWER kw 300 350
DIMENSION(L×W×H)(ABOUT) mm 39700×5200×5850
TOTAL WEIGHT(ABOUT) T 42 45
