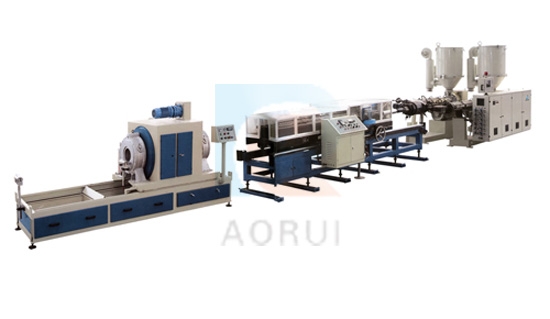

Double-wall corrugated pipe production equipment

PVC double-wall corrugated pipe production line is introduced in detail:
Performance and advantages:
PVC double-wall corrugated pipe is widely used. Through the company's absorption of foreign advanced technology, independent research and development of PVC double-wall corrugated pipe production line, with a number of patented technology, production diameter range 63mm-500mm. High degree of automation, stable operation, high output. The new high-efficiency single screw extruder has a large amount of extrusion. The forming machine adopts horizontal structure, shuttle drive, sealed water-cooling, vacuum forming, original online double-flare flaring.
The production line has beautiful appearance, high degree of automation, and stable and reliable production.
Main technical parameters:
63-160mm PVC double-wall corrugated pipe production line

compositionmodelpowertotal weightFeatures
Twin screw extruderSJSZ--6537 (drive power)4500kgExtrusion volume, anti-wear
 Extrusion headΦ63-Φ160 13 kw--The main material 38CrMoAl quenched and nitridized
Forming moduleΦ63-Φ160 ---- The main material 40Cr; conditioning treatment
Forming MachineSBZ1607kw3200kgLinkage with the host; automatic lubrication air cooling plus water cooling, cooling speed block
Cutting sawQG160A0.75kw500kgRing blade chipless cutting
Automatic Flaring MachineSBK20638.1kw2500kgJapan Mitsubishi programmable controller air-cooled setting;


160-500mm PVC Double Wall Corrugated Pipe Production Line


compositionmodelDimensions (length, width, height) mmTotal power (kw)Total weight (kg)
ExtruderSJSZ926000x1400x2390200( max)8500
  MouldSBZG160 outside2000xφ370

50(max)

2000
SBZG200 outside2400xφ4652600
SBZG250 outside2800
SBZG315 outside3000
SBZG400 outside2400xφ6203500
SBZG500 outside2400xφ7004000
Forming MachineSBCJ5004600x2120x218050(max)10000
Cutting MachineQG60304252x2100x24007.53600
Pipe expanding machineSGK5008725x2600x2100286000
