PE/PVC large dia. double-wall corrugated pipe is a new-type plastic tubing with the annular ripple on the outside wall and the smooth structure on the inner wall. Compared with other structures of non-conventional wall tubing, its weight is much lower than that of even wall tubing or concrete tubing at the same annular stiffness due to its excellent design of tubing wall structure. It is easy to connect and construct. The cost of tubing can be decreased by a large margin and it can increase the competitiveness of tubing market. It is popular and applicable generally abroad and it has greatly substituted the traditional concrete tubing and other structure wall tubing. With the further deepening of the state capital construction, large dia. double-wall corrugated pipe will be more widely used in the departments of city planning, water conservancy and post and telecommunications, etc. due to its superiority and vitality.
FIELDS IN APPLICATION
It is used in the fields of civil water supply and sewage, project of blowdown, water conservancy works, project of communication network, etc.
FEATURE OF THE MACHINE SET

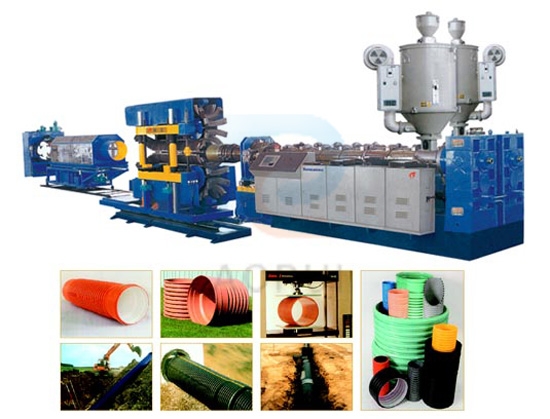

PE/PVC large dia. double-wall corrugated pipe has been designed and developed carefully in our factory on the basis of the experience of producing tubing equipment many years and the most advanced technology and manufacturing engineering in the world and it is a special processing equipment at national leading level. It has adopted the man-machine interface to control on the whole line with high degree of automation, easy to operation and running steadily.
THE MAIN TECHNICAL SPECIFICATIONS。

THE MAIN TECHNICAL SPECIFICATIONS
TYPE		JG-SBG630	JG-SBG800
RAW MATERIAL		PVC	PE
EXTRUSION SYSTEM
SCREW DIA.	mm	Φ92/188	Φ90/120
L/D RATIO	L/D		30:1
DRIVING POWER	kw	90	75/135
HEATING POWER	kw	77	120
HEATING ZONE		8	6×2
FORMING SYSTEM
NUMBER OF MOULD BLOCK	Pair	42	42
DRIVING POWER	kw	7.5	7.5
COOLING POWER	kw	11	11
LUBRICATING POWER	kw	0.75	0.75
MOVE SPEED OF MOULD BLOCK	m/min	0.3-3	0.3-3
VACUUM PUMP POWER	kw	75	75
FORMING LENGTH OF MOULD BLOCK	mm	2286	2286
SPRAY COOLING SYSTEM
COOLING METHOD		COOLED BY WATER AND WIND
COOLING POWER	kw	9.5	9.5
AUTOMATIC CUTTING SYSTEM
DRIVING TOTAL POWER	kw	10.4	10.4
CUTTING METHOD		PLANETARY CUTTING
CUTTING RANGE	mm	Φ200-630	Φ225-800
OTHERS
RANGE OF PIPE DIA.	mm	Φ200-630	Φ225-800
CENTRAL HEIGHT	mm	1600	1600
WATER CONSUMPTION	L/H	6000	6000
INSTALLED CAPACITY(ABOUT)	kw	460	550
NORMAL POWER	kw	300	350
DIMENSION(L×W×H)(ABOUT)	mm	39700×5200×5850
TOTAL WEIGHT(ABOUT)	T	42	45
